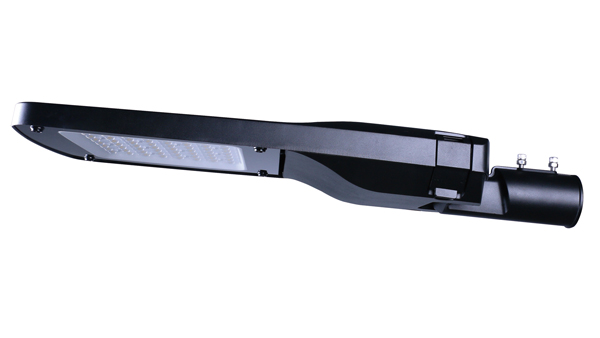

    Aluminum Die Casting Led Street Light Casing Protection Level IK08 120W

    Ask Lasest Price
    Brand Name : Die casting man
    Model Number : YASL-19
    Certification : CE, RoHs, ENEC, CB
    Price : Negotiable
    Payment Terms : T/T, L/C, Western Union
    Supply Ability : 1000PCS/Month.
    Delivery Time : 35days after deposit
    • Product Details
    • Company Profile

    Aluminum Die Casting Led Street Light Casing Protection Level IK08 120W

    Economical led Street Light Protection level IK08 lamp seires 180W 120W big wattage


    30W 40W 50W 60W 80W 100W 120W 150W 180W
    Road Outdoor LED street light housing IP66 Aluminum die-casting housing

    What I'm showing you now is the street light that we developed this year, the SL-19 series,For this series, we designed total of three sizes models, to deal with three different wattage requirements,The minimum power can be 30watts, the maximum can reach 180 watts.



    Products Description

    Product Datasheet
    Item No.YASL-19-30YASL-19-50YASL-19-80YASL-19-150
    Power30W50W80W150W
    Lumen Efficiency140lm/w140lm/w140lm/w140lm/w
    Lumen3800lm6500lm10400lm19500lm
    Product Size (mm)459X186X119577X233X103627X271X103768X301X104
    Electrical Data
    Working VoltageAC100-265V 50/60Hz
    LED:Lumileds / Epistar / SANAN
    CCT3000K, 4000K, 5000K ,6000K
    CRIRa>70 (standard)/ Ra>80
    Driverlocal
    THD<15%
    Power Factor(PF)PF>0.9
    IP RatingIP66
    IK Rating1K09
    Holder50mm/B60mm (standard)
    Body MaterialHign pressure die-cast aluminum
    Housing CalorDark Grey/Black/Light Grey (availabel on request)
    Cover MaterialUV-resistant Polycarbonate
    Working Environment-20 ~+50 , 10%~90%RH
    Lifespan L70 at 25> 50,000hrs
    Mounting TypeSide entry or Vertical pole mounted ±15°
    Dimmable1-10V Dimming /Timer Dimming
    Protecdion ClassClass I (standard) / Class
    StandardsCE, RoHS, ENEC, CB, LM79. LM80, TM-21, IP66, IK09
    Available on requestNEMA socket (3/5/7pins), ZHAGA socket. Short cap, Photocell., Motion sensor, NTC. OLC, DALI Dimming
    Reasonable toleranceWatt: ±10%,CCT:±500K, Lumen efficiency: ±5%

    Material:Hign pressure die-cast aluminumWattage:30~150W
    IP:66CRI:≥70
    Color Temperature:3000/40000/6500KInput Voltage:AC90 - 265V
    Frequency Range:50 - 60HzWorking Ambient Temperature:-40℃ - 50℃
    Working Ambient Humidity:20% - 90%RHLED Lifetime:50000h

    Is there anything else you want to know about this lamp?


    1. Q:What is the waterproof rating?

    A: It’s can pass IP66

    2. Q:How many years of warranty do you promise?

    A: We guarantee the housing for 5 years.for the whole lamp,The warranty of electrical parts is depends on the warranty time of different driver brand.

    3. Q:What is the grade of your powder coating?

    A: Normal is C2 grade,but If the customer has special request,such as used at the seaside,in this case,we can use phosphating with Akzo powder to reach higher levels,like C3,C4.

    4. Q:What's the packing you use?

    A: Our packing is PE bags with foam and carton box,we will ensure it safe.

    5. Q:What is your usual lead time?

    A: 25 days for regular products, 10 days extra for special requirements.

    6. Q:Do you sell only whole lamps?Or I can just buy the empty housing?

    A: It’s up to you,we can also sell empty housing,even you just by the die-casting housing without powder coating is also no problem.

    7. Q:What brand of driver do you use?

    A: The brand we usually use is Inventronics,Sosen these China local brand,and ,MEANWELL these international brand,Customers can also specify brands,it’s no problem.

    8. Q:About the powder coating,i have a question,What colors do you usually use?Can we customize the color?

    A: The colors we usually use are black and gray,you can also customize other color,just tell us the RAL number,we will according the RAL number to do the powder coating.

    9. Q:Ok,that’s good,So if I want to specify a color,will you charge extra cost?

    A: will not,but we will require MOQ500 pcs.

    10. Q:ok,last question,Do you accept OEM?

    A: Of course we can,we have own die-casting machine and mould design team,must be able to meet your requirements,and we already have a lot of OEM customers.
